pH/ORP/Conductivity/TDS/Salt

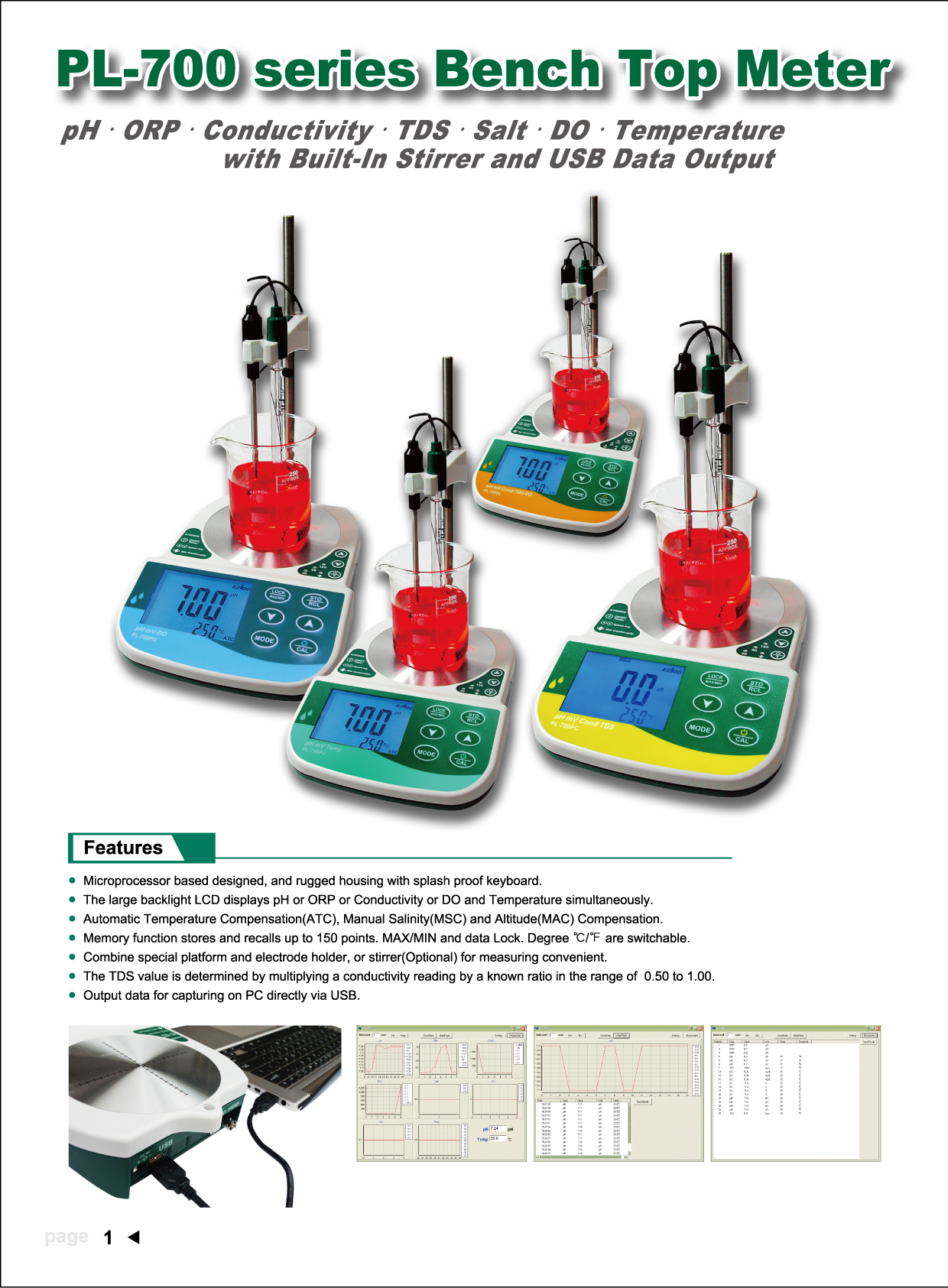

PL-700 Series Bench Top Meter

PL-700 Series Bench Top Meter

DETAIL

PL-700 Series Bench Top Meter

Features:

Microprocessor based designed, and rugged housing with splash proof keyboard.
The large backlight LCD displays pH or ORP or Conductivity or DO and Temperature simultaneously.
Automatic Temperature Compensation(ATC), Manual Salinity(MSC) and Altitude(MAC) Compensation.
Memory function stores and recalls up to 150 points. MAX/MIN and data Lock. Degree ℃/℉ are switchable.
Combine special platform and electrode holder, or stirrer(Optional) for measuring convenient.
The TDS value is determined by multiplying a conductivity reading by a known ratio in the range of 0.50 to 1.00.
Output data for capturing on PC directly via USB.

Models:

PL-700AL(S): pH, mV, Conductivity, TDS, Salt, DO, Temperature, (Stirrer)
PL-700PC(S): pH, mV, Conductivity, TDS, Salt, Temperature, (Stirrer)
PL-700PD(S): pH, mV, DO, Temperature, (Stirrer)
PL-700PV(S): pH, mV, Temperature, (Stirrer)

Specifications:

	pH	ORP
Range	-2.00~16.00 pH	-1999 ~ -200 mV -199.9 ~ 499.9 mV 500 ~ 2000 mV
Accuracy	±0.01+1 digit	±2+1 digit
Resolution	0.01 pH	0.1/1 mV
Compensation	ATC: 0~100 ℃	N/A

	Conductivity	TDS	Salt
Range	0.0~ 199.9μS 200~ 1999μS 2.00~ 19.99 mS 20.0~ 100.0 mS	0.0~131.9 ppm 132~1319 ppm 1.32~13.19 ppt 13.2~66.0 ppt	0.0~99.9 ppm 100~999 ppm 1.00~9.99 ppt 10.0~50.0 ppt
Accuracy	±2% FS	±2% FS	±2% FS
Resolution	0.1/1μS/0.01/0.1 mS	0.1/1ppm/0.01/0.1ppt	0.1/1ppm/0.01/0.1ppt
Compensation	ATC: 0~60 ℃	ATC: 0~60 ℃	ATC: 0~60 ℃

	DO	O2	Temp.
Range	0~20.00 mg/L 0~20.00 ppm	0~200.0 %	0~110 ℃
Accuracy	±0.2+1 digit	±2% FS	±0.2+1 digit
Resolution	0.01 mg/L	0.10%	0.1 ℃
Compensation	ATC: 0~50 ℃ MSC: 0~50 ppt MAC:0-20000 ft

Power	9V DC (AC adaptor)
Dimension	103 x 145 x 32 mm without electrode holder
Weight	700 g (meter only)

Accessories for complete kit :

PL-700AL	PL-700PC	PL-700PD
pH glass electrode	pH glass electrode	pH glass electrode
Conductivity cell	Conductivity cell	DO probe
DO probe	Temp. probe	Temp. probe
Temp. probe	Standard solution	Membrane cap x 2 pcs
Membrane cap x 2 pcs	Electrode holder	Electrolyte x 20 ml
Electrolyte x 20 ml	Software and USB cable	Standard solution
Standard solution	DC/AC adaptor	Electrode holder
Electrode holder	instruction manual	Software and USB cable
Software and USB cable	Gift box	DC/AC adaptor
DC/AC adaptor	Optional: Stirrer	instruction manual
instruction manual		Gift box
Gift box		Optional: Stirrer
Optional: Stirrer
